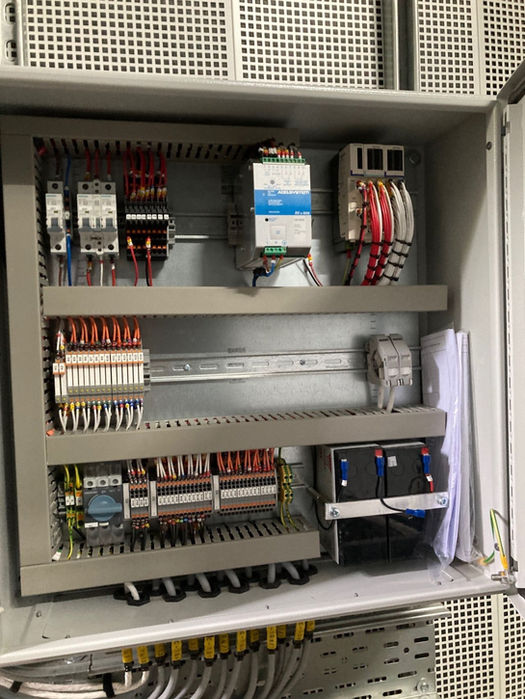

Located on the outskirts of London, we have our very own panel workshop where we design, build and test bespoke panels.
We offer a bespoke Dual Fuel Pump Panel providing all necessary fire, emergency, leak detection, pump control, process monitoring and alarming facilities. BMS monitoring signals are provided hardwired or as data signals. It comes standard with a controller and HMI screen.
The following features are included for the protection and control of the fuel system:
-
Fire, emergency and fuel leak sensing functionality for the shutdown of the fuel mechanical drop valve, motorised fuel valve and pump inhibits.
-
The panel comes standard with either a single or duplex single phase and/or 3 phase supply facility with 24VDC UPS control supply. Battery autonomy can be provided for 6 hours or beyond.
-
The panel has local lamps indicating the status of the power supplies and battery supply.
-
Manual control of the fuel pumps in case of automatic control failure.
-
HMI screen to view levels, pump statuses, alarms of all process equipment.
The total price of each panel includes charges of the following: 20% material mark-up, labour hours, drawing cost, delivery charge, engineering/design cost, documentation cost, and a 1-hour panel functioning test.
-
Connect to site PLC system upload PLC code.
Master PLC Control Panel
-
Connect laptop to PLC and upload code
-
Check the processor status.
-
Log and clear any minor faults on PLC and networks.
-
CPU check processes are in operation and there are no alarms.
-
Check battery status and confirm no alarms.
-
Confirm PLC code remains as built revision.
-
Confirm status lamps are cards are green.
-
Confirm communications to remote PLC’s and outstations.
-
Confirm no alarms present on processors.
-
Confirm no alarms present on the input and output modules.
-
Visual inspection of all components within PLC cabinet.
-
Measure and record battery charger volts of each charger.
-
Confirm generator control panels communication to PLC.
-
Record network configuration.
-
Check network status and inspect event logs.
-
Ensure panels are in good condition.
Store the uploaded copy of the on site PLC logic and HMI / SCADA software.
Remote PLC Outstation Panel
-
Check battery status and confirm no alarms.
-
Confirm status lamps are cards are green.
-
Confirm communications to main PLC.
-
Confirm no alarms present on the input and output modules.
-
Visual inspection of all components within cabinet.
-
Measure and record battery charger volts of each charger.
-
Check network status.
-
Ensure panels are in good condition.
Local and Remote PLC HMI or SCADA Screen
-
Connect laptop and upload software.
-
Inspect for damage and functionality on Screen/keypad.
-
Measure and record battery charger volts of each charger.
-
Report and record HMI / SCADA alarms and events.
-
Confirm all screen displays are visual
Report
Produce a detailed report of the PLC system in PDF format.
-
As control systems age manufacturers slowly stop supporting some key components.
Here at Bells Power Control Systems we can upgrade your existing PLC control system, replacing components copying software from the existing PLC to the new control system with little down time during this operation. Likewise, SCADA and HMI screens can be replaced using the existing software into a new screen.
Our in-house team can write PLC code and alter existing code to control any system or process. We also configure associated SCADA / HMI software. Allen Bradley and Schneider manufacturers can be catered for.
Software & SCADA
Using the latest Allen Bradley and Schneider software we can re-configure your existing PLC control systems, update and upgrade HMI / SCADA systems, incorporating client changes to their system with hardware, PLC code and HIM / SCADA controls.
We offer a wide range of services from fuel control panels, fan control panels, PLC control systems, Generator Mechanical Control panels, load bank points, automatic transfer panels etc. Our clients are able to place a single order for turnkey project solutions. Each project we undertake is bespoke to the needs of the client and their system requirements.
Standard Control Panels
We produce several standard fuel panels and fan panels, depending on our clients specification these have.
Bespoke Control Panels

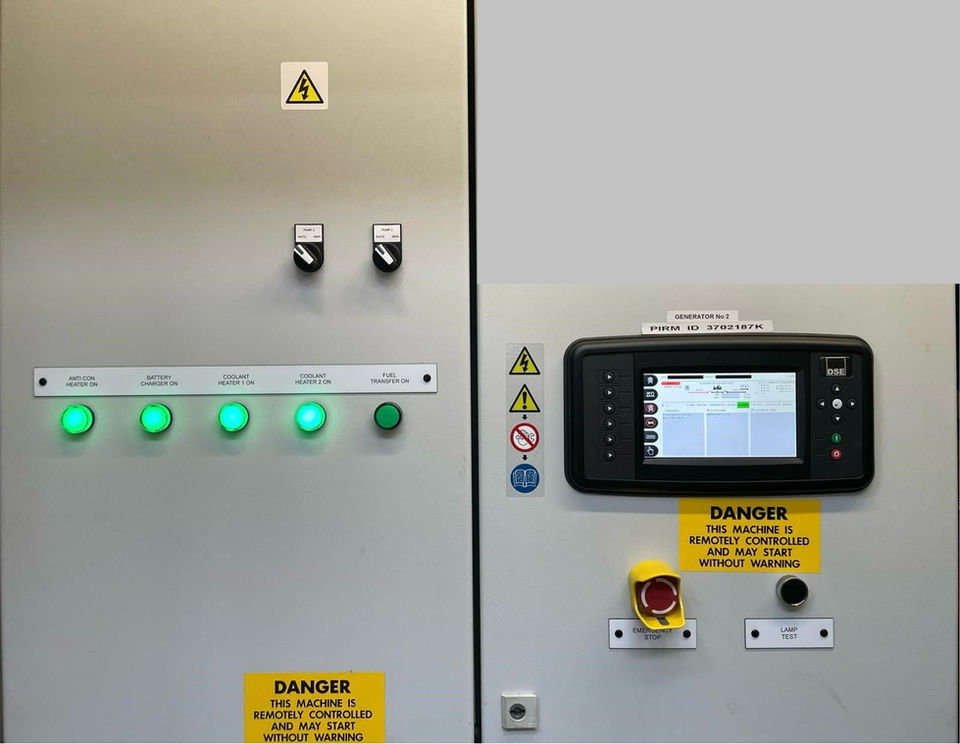

We offer control panel designs specific for your requirements, this could be generator control panels, load bank control system, PLC controlled fuel system, Automatic Transfer Switch monitoring system and so on.
Installation & Testing
Cable containment and cable installation. Glanding and terminating. Data and Communications cabling installation all installed, tested and certificated by our dedicated installation team.
